Fly Wing

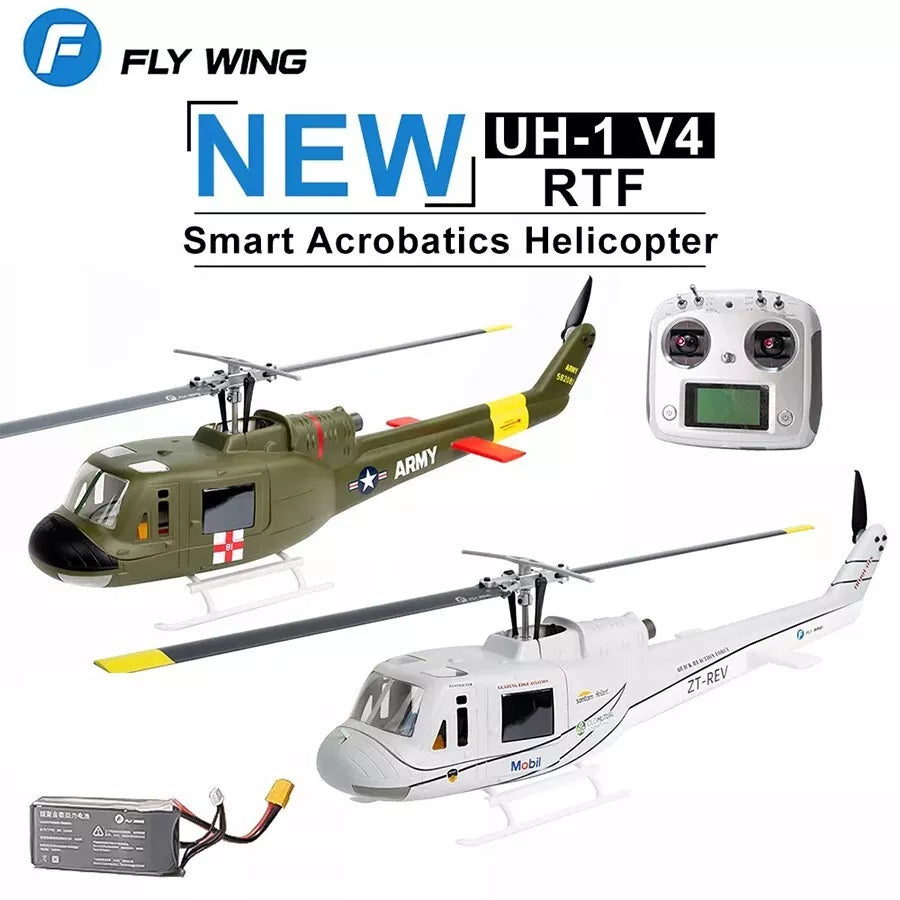

UH-1 V4 10CH GPS 3D Auto Return Hovering RC RTF Helicopter

UH-1 V4 10CH GPS 3D Auto Return Hovering RC RTF Helicopter

SKU: SKU UH-1-V4-RTF

Regular price $799.00 USD
Regular price $799.00 USD Sale price $799.00 USD
Sale Sold out
Shipping calculated at checkout.
Colors

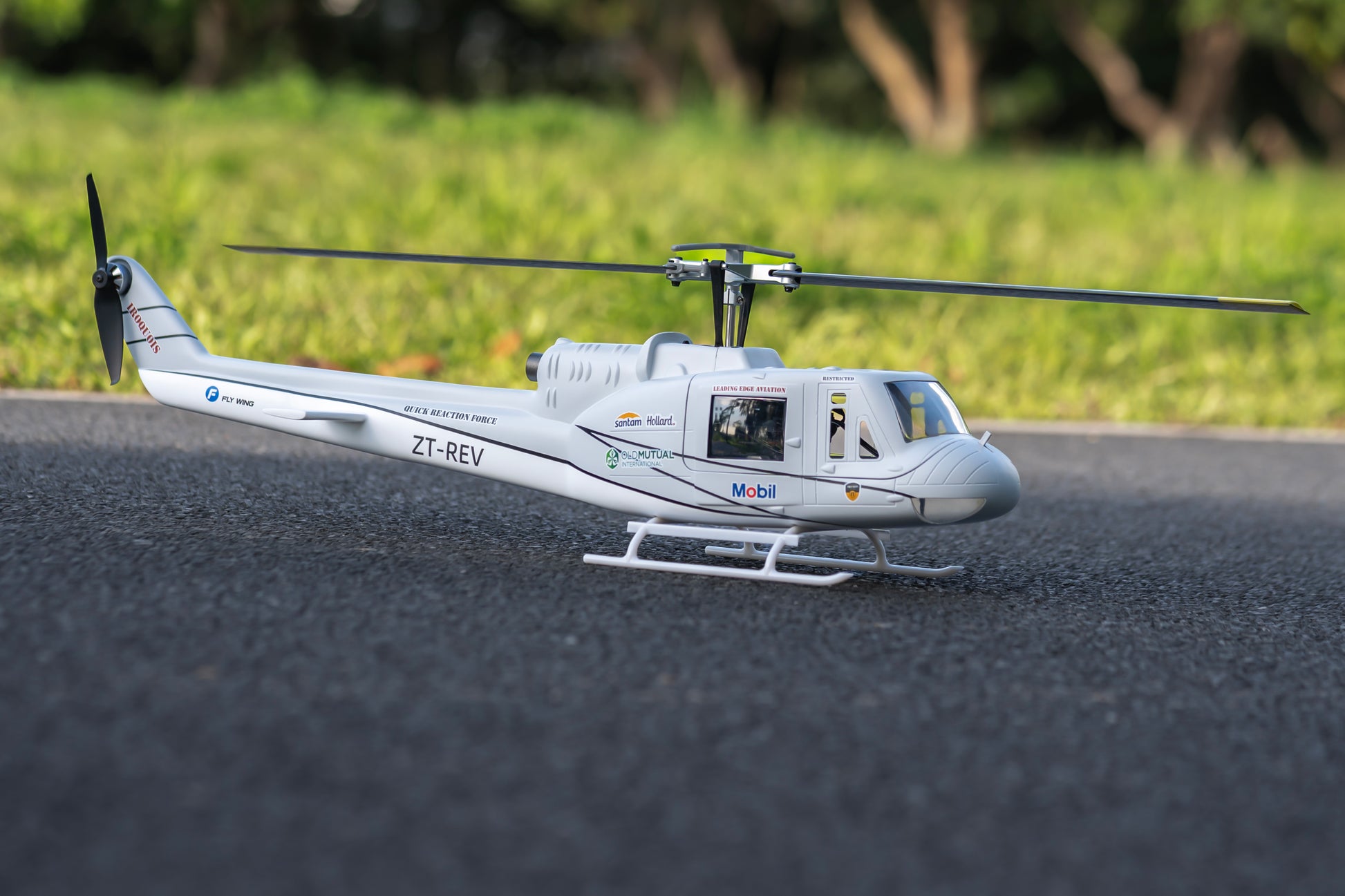

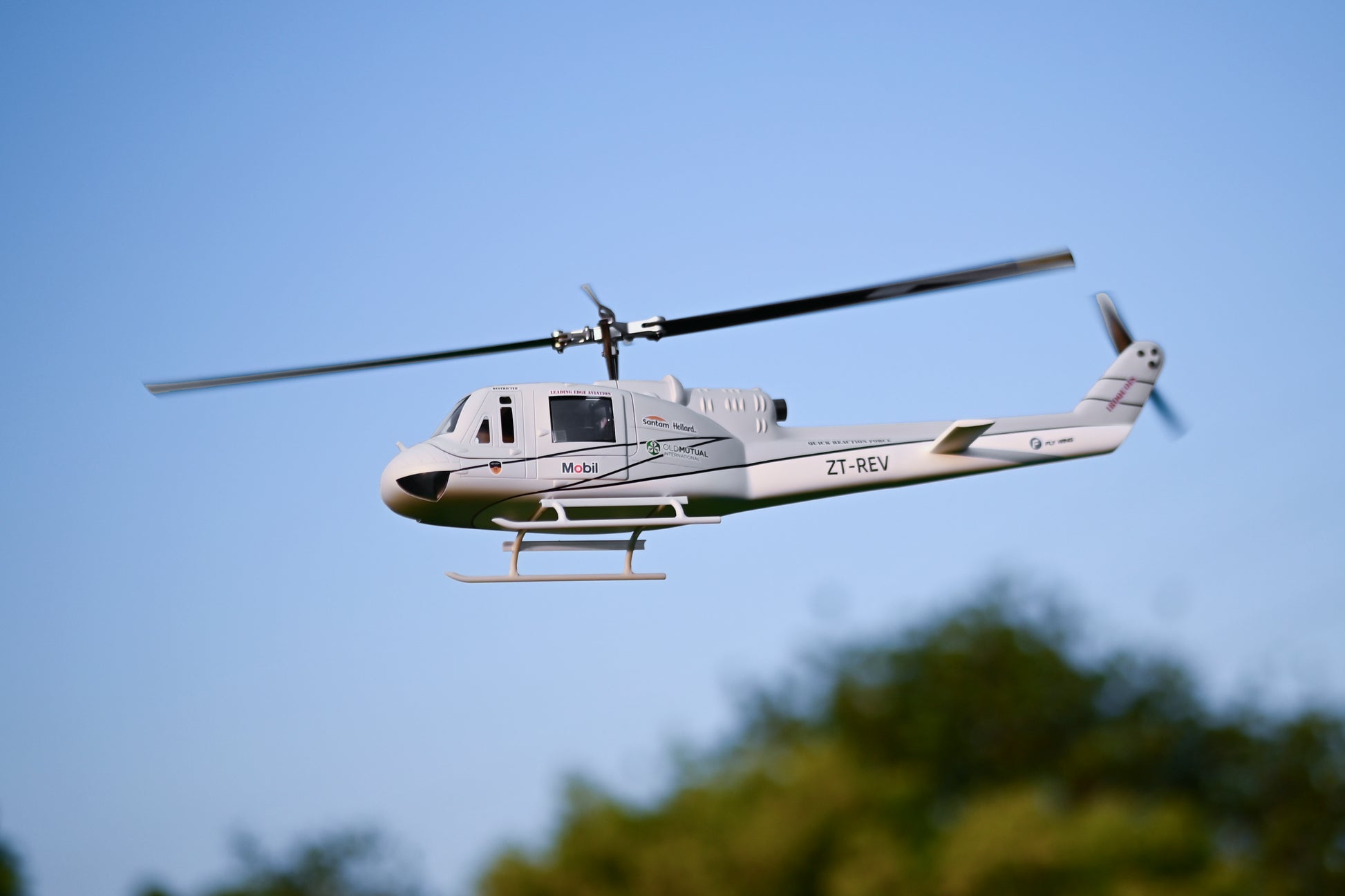

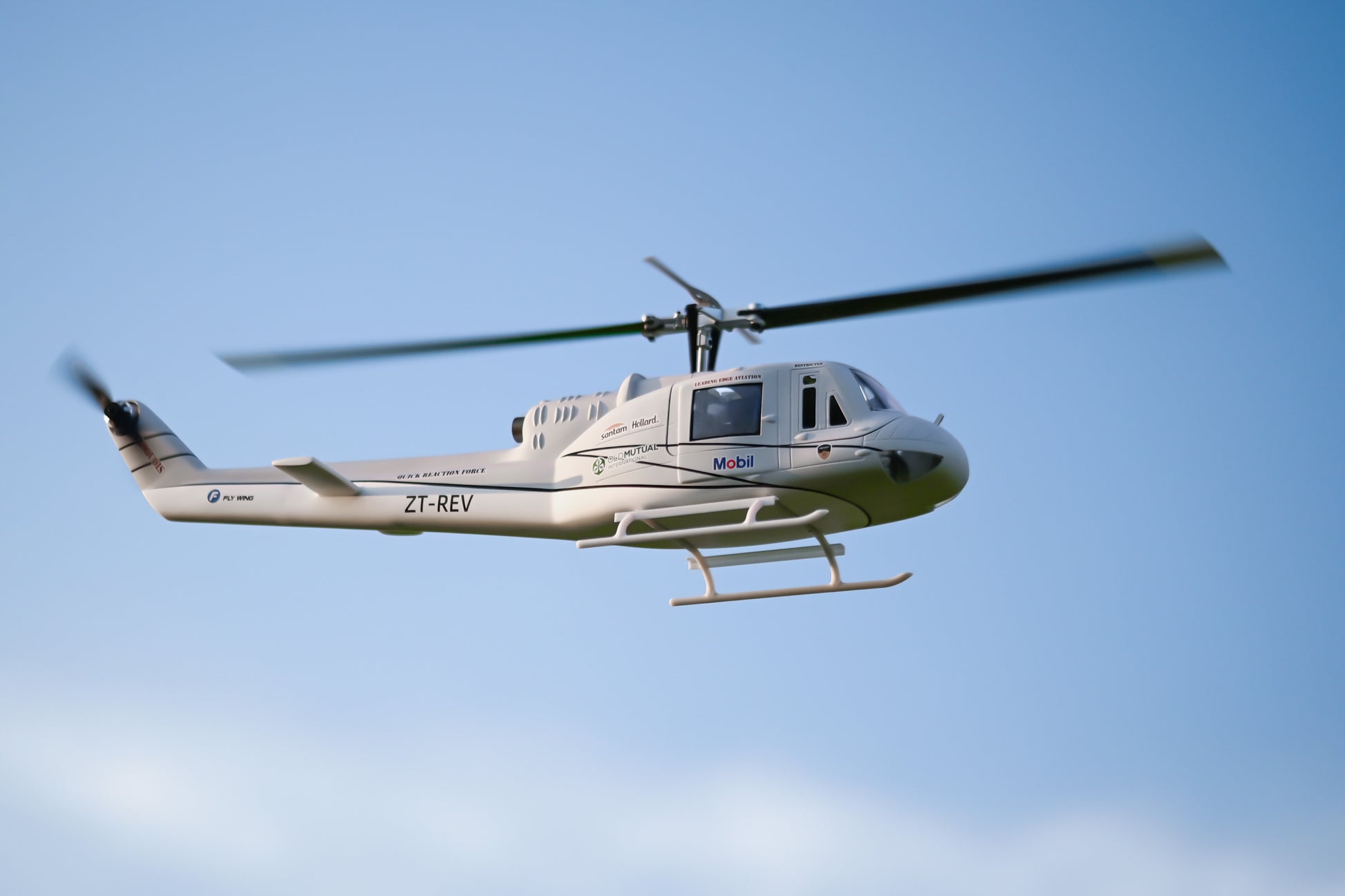

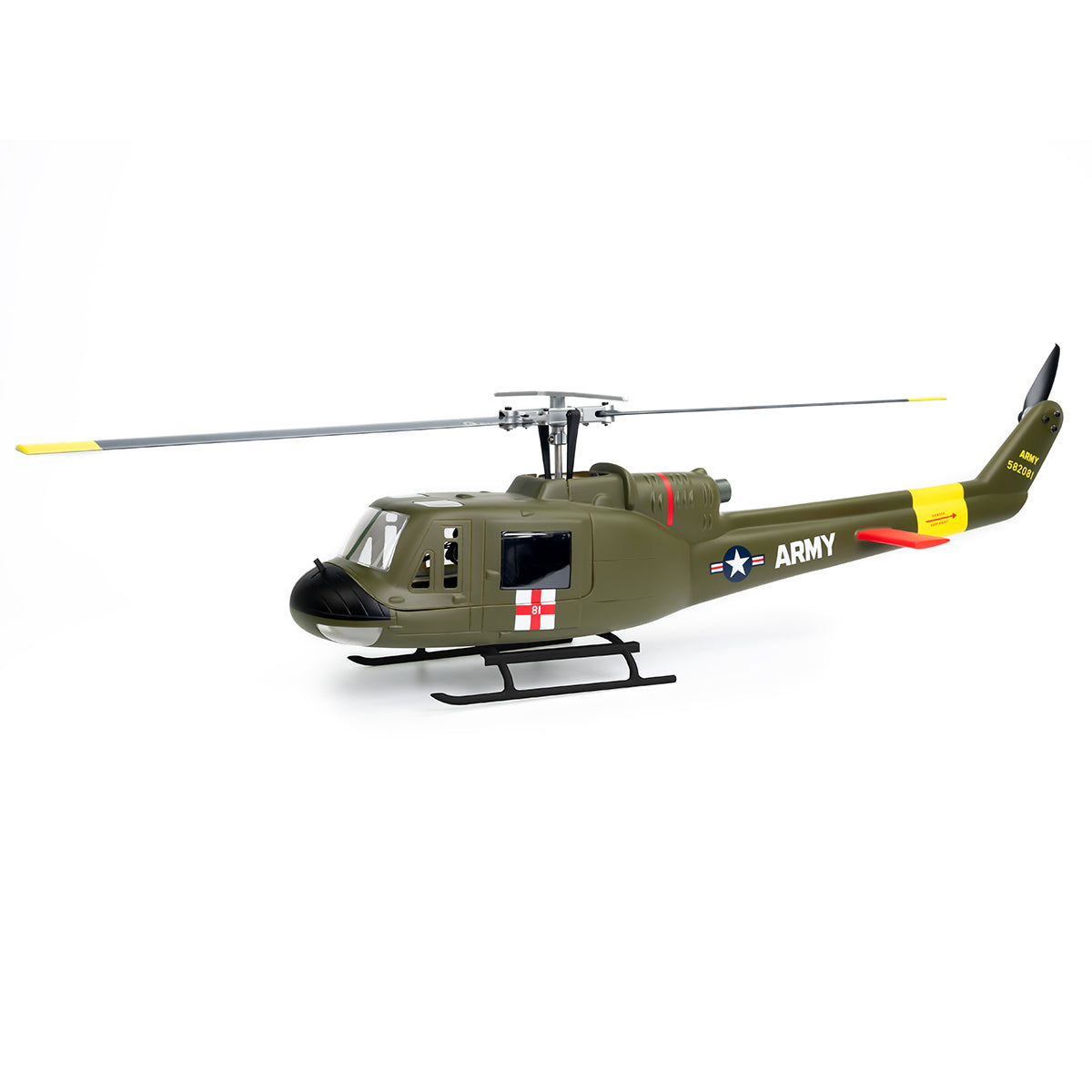

UH-1 V4 Smart RC Helicopter

Military-Style Helicopter with Advanced GPS and Enhanced Scale Details

Product Description

The UH-1 V4 Smart Helicopter represents the evolution of the legendary "Huey" general-purpose helicopter, nicknamed "American Daddy" but commonly known as "Iroquois." This military-numbered helicopter (originally changed from HU-1 in 1963 to UH-1) has been faithfully recreated with enhanced scale details and modern smart technology.

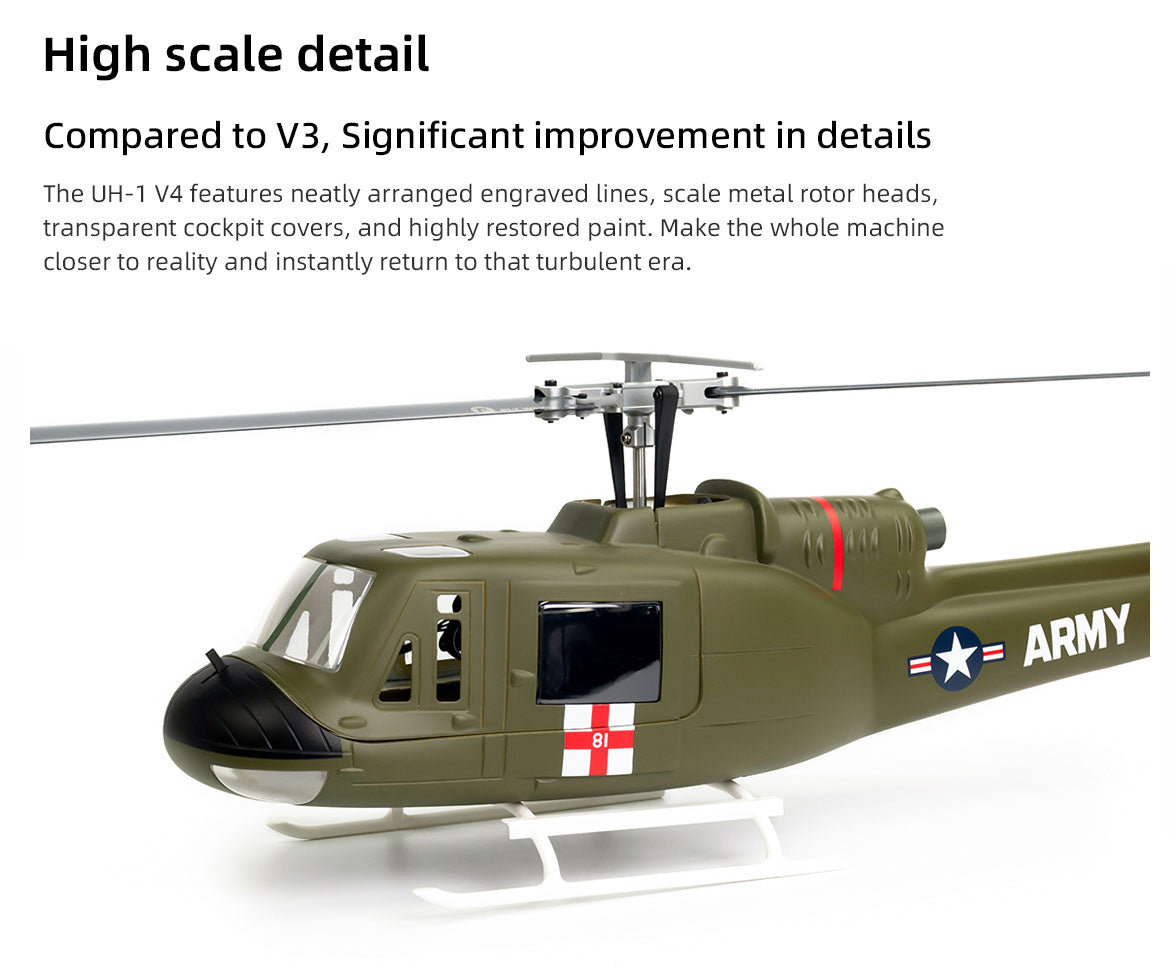

Compared to the V3 version, the UH-1 V4 features significant improvements in details with neatly arranged engraved lines, scale metal rotor heads, transparent cockpit covers, and highly restored paint schemes. The helicopter brings you instantly back to that turbulent era with remarkable realism whilst incorporating cutting-edge flight technology for an easier flying experience.

This helicopter features a 16V high-power brushless motor configuration that delivers superior performance compared to traditional 12V systems. Combined with an ESC optimised for motor characteristics, flight efficiency is greatly improved, providing over 20 minutes of flight time.

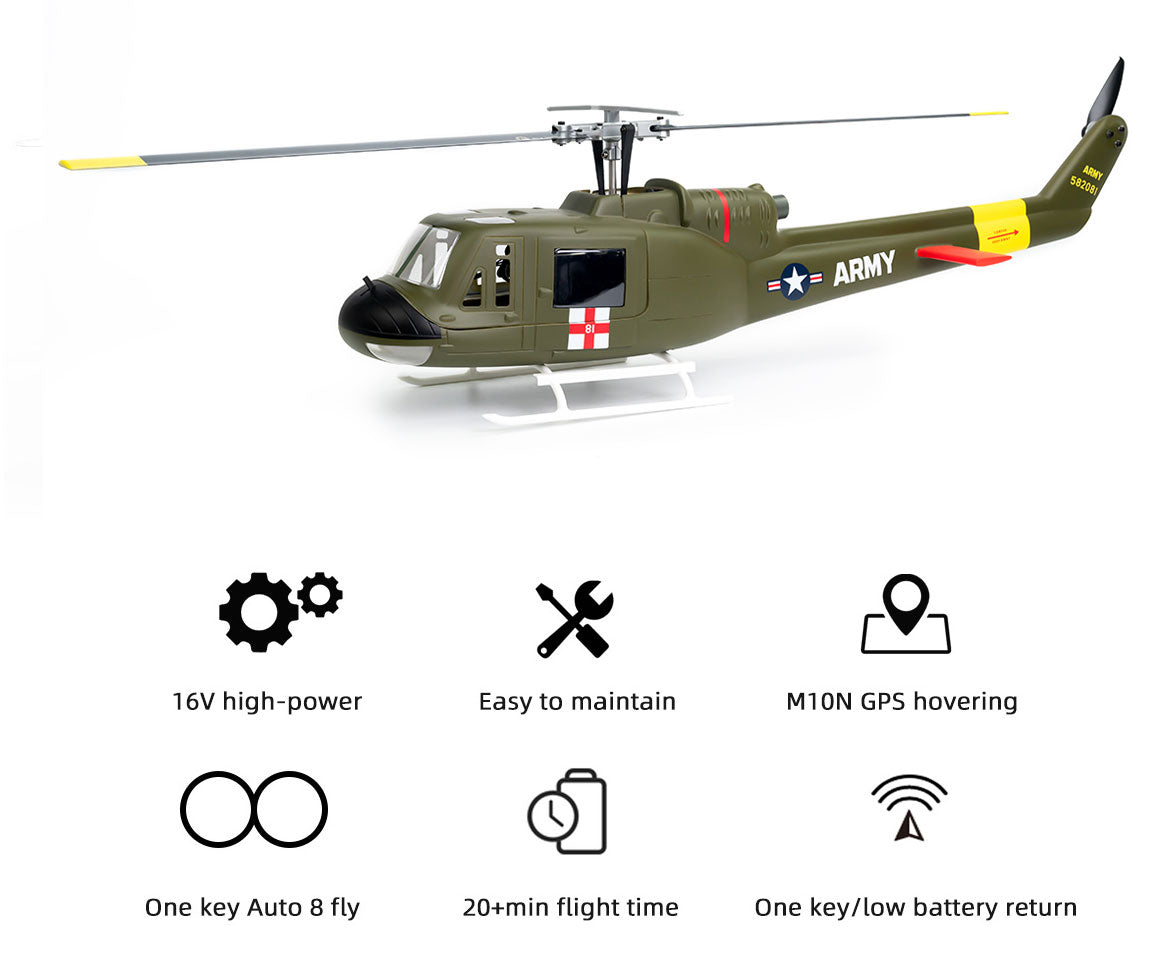

Key Features

  • M10 GPS positioning with 80% performance increase
  • 20+ minute ultra-long flight time
  • 16V high-power brushless motor system
  • Enhanced scale detail compared to V3
  • One-key return and low-battery protection
  • Automatic flight mode (figure-8 and circle patterns)
  • High-performance servo with 4KG torque
  • 10-channel transmitter with 1km range
  • Sensor damping design for stability
  • Scale metal rotor head design
  • Plug-in cabin door for easy access
  • Transparent cockpit cover

Scale Design Features

Enhanced V4 Details

  • Neatly arranged engraved lines
  • Scale metal rotor heads
  • Transparent cockpit covers
  • Highly restored military paint schemes
  • 3D printed decorative parts
  • Plug-in cabin door design for easy battery access

Military Authenticity

  • Faithful recreation of legendary UH-1 "Huey"
  • Military number designation accuracy
  • Army, Air Force, and Navy service representation
  • Realistic turbulent era aesthetics

Flight Modes & Operations

M10 GPS Positioning Mode

  • Similar operation to traditional drones
  • M10 GPS positioning assistance
  • Barometric altitude assistance
  • Fixed location and height hovering
  • Push joystick to fly, release to stop
  • Easy operation without panic

Automatic Flight Mode

  • Horizontal flight path programming
  • Figure-8 shaped flight patterns
  • Circular flight patterns
  • Rudder control for nose direction during auto flight
  • Spin flight capabilities

Technical Specifications

Specification Value
Model UH-1 V4
Type Smart RC Helicopter
Motor System 16V Brushless Motor Configuration
Main Motor 16V Brushless Motor
Tail Motor High-Speed Brushless Motor
ESC Optimised for Motor Characteristics
Flight Time 20+ minutes
Remote Control Range Approximately 1 kilometre
Transmitter Channels 10 Channel
GPS Module M10 GPS Positioning
Servo Torque 4KG·cm
Servo Response 0.12sec/60°
Rotor Head Material Scale Metal
Cockpit Transparent Cover

Technical Details

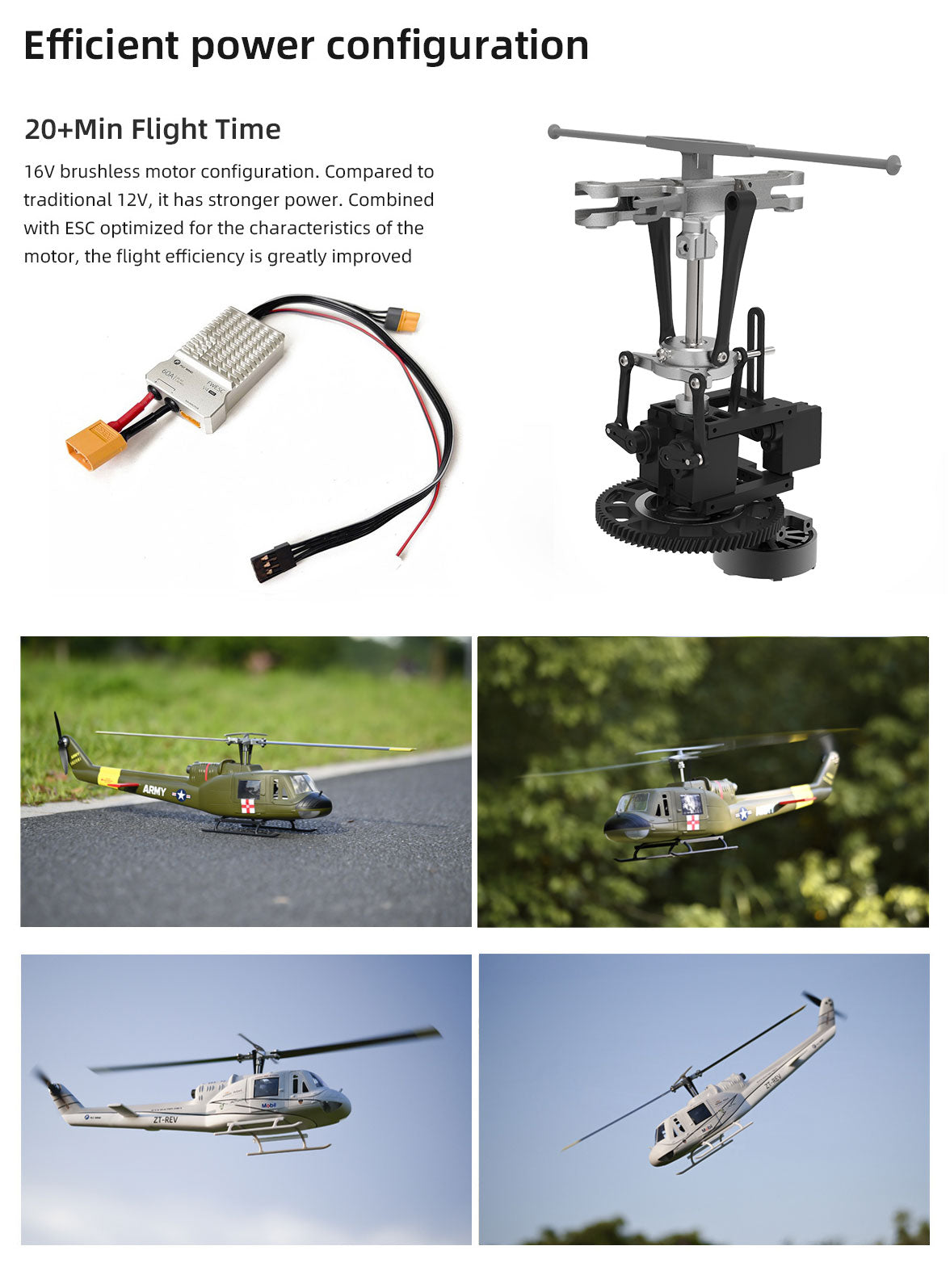

Power System

  • 16V brushless motor configuration
  • Stronger power compared to traditional 12V systems
  • ESC optimised for motor characteristics
  • Greatly improved flight efficiency
  • High-speed brushless tail motor
  • Specially designed high-efficiency tail rotor

Control System

  • High-performance servo with coreless motor
  • 4KG·cm torque capacity
  • 0.12sec/60° high-speed response
  • Elliptical output shaft design
  • Metal gear material
  • No servo arm debugging required

GPS & Navigation

  • All-new M10 GPS positioning module
  • Omnidirectional positioning technology
  • Faster satellite search speed
  • Better signal quality
  • 80% performance increase vs previous generation
  • More stable hovering capabilities
  • More responsive flight control
  • More accurate return-to-home

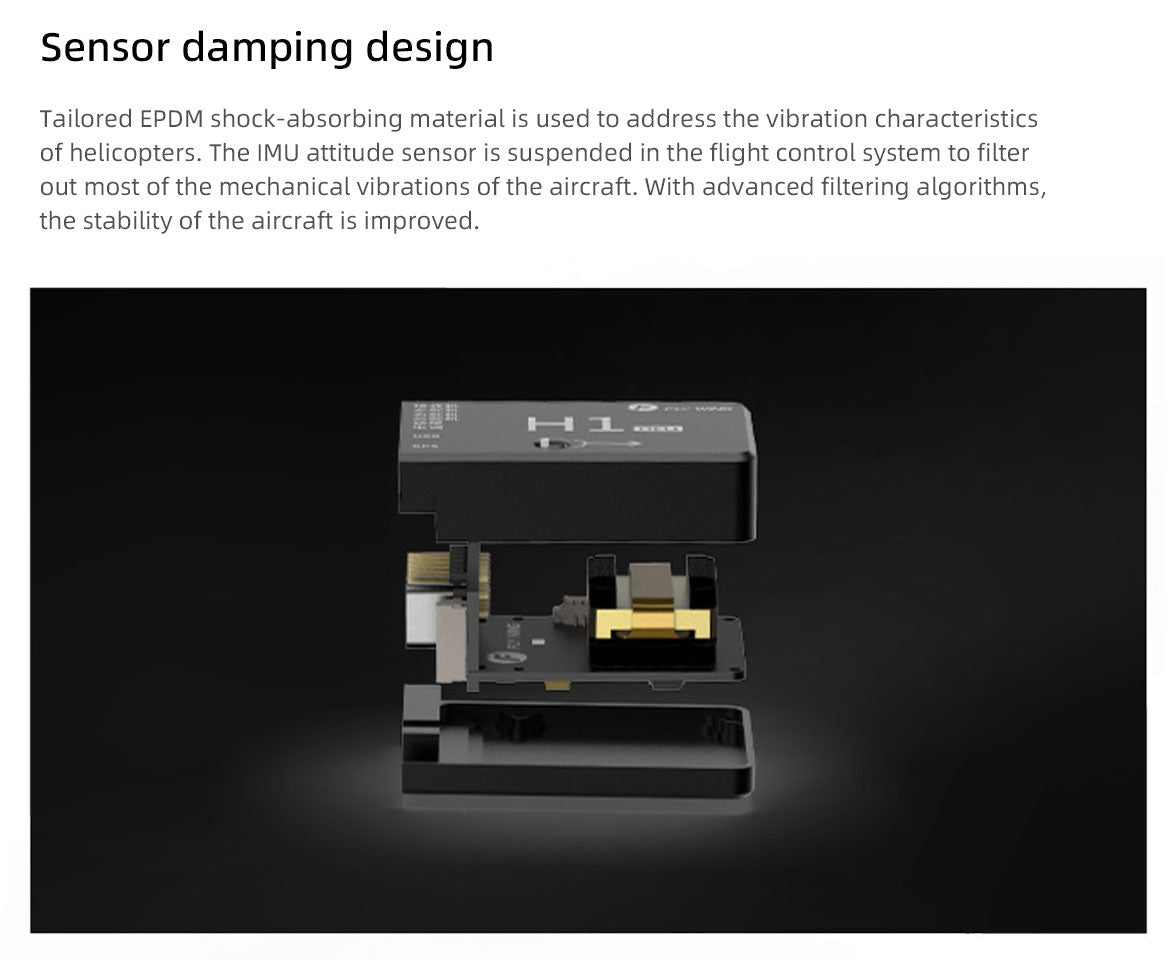

Sensor & Damping

  • Tailored EPDM shock-absorbing material
  • Addresses helicopter vibration characteristics
  • IMU attitude sensor suspension in flight control
  • Filters most mechanical vibrations
  • Advanced filtering algorithms
  • Improved aircraft stability

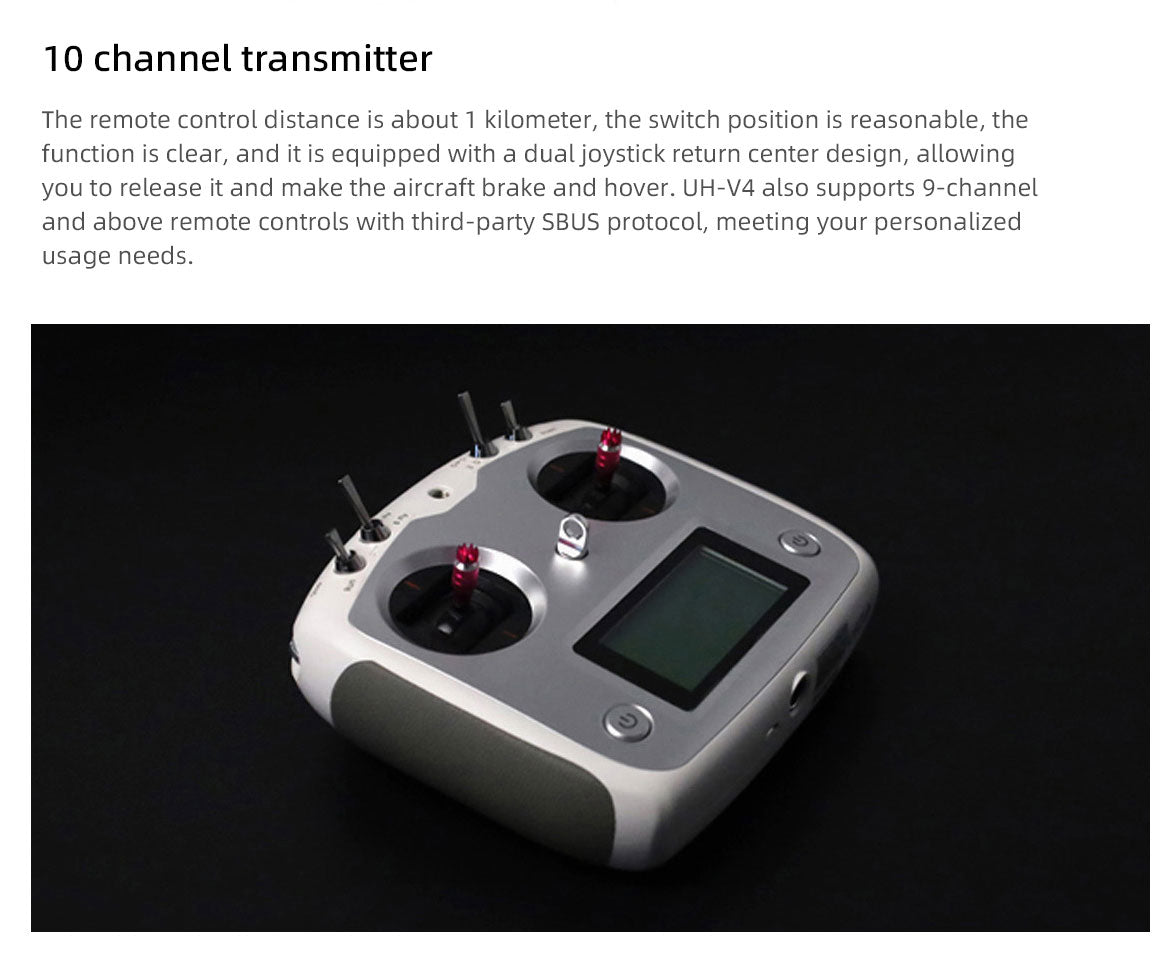

Remote Control

  • 10-channel transmitter
  • Approximately 1km control distance
  • Reasonable switch positioning
  • Clear function layout
  • Dual joystick return centre design
  • Release-to-brake and hover capability
  • SBUS protocol support for 9+ channels
  • Third-party remote control compatibility

Safety & Protection Features

  • One-key return function
  • Low-battery automatic return
  • Automatic landing at takeoff point
  • Battery voltage monitoring
  • Sufficient residual voltage protection for safe return
  • Multiple security protections
  • Failsafe return system

Software Features

  • Intuitive and easy-to-use interface
  • Helicopter power adjustment
  • Reaction speed customisation
  • Compass calibration
  • Flight style personalisation
  • Tutorial video integration
  • Swash plate servo adjustment
  • Forward/reverse servo configuration
  • Neutral point fine adjustment
  • Professional throttle control

Maintenance & Design

  • Easy maintenance design
  • Scale metal rotor head construction
  • Plug-in cabin door for easy battery access
  • 3D printed decorative parts
  • Quick battery replacement
  • Accessible internal components
  • Durable metal gear materials

Historical Significance

The UH-1 "Huey" helicopter holds a legendary place in military aviation history. Originally designated as HU-1 in 1956 and later changed to UH-1 in 1963, this general-purpose helicopter earned the nickname "American Daddy" and became commonly known as the "Iroquois." Primarily equipped by the Army, as well as the Air Force and Navy, the UH-1 served with distinction in numerous conflicts and operations.

This V4 recreation captures the essence of that turbulent era with meticulous attention to historical accuracy while incorporating modern RC technology for an authentic yet manageable flying experience.
