FW450L ACE GPS/ATT/ACRO，H1 GPS/3D 6CH Remote Control RC RTF Helicopter
FW450L ACE GPS/ATT/ACRO，H1 GPS/3D 6CH Remote Control RC RTF Helicopter
SKU: SKU FW450L V3-RTF
Couldn't load pickup availability
FW450L ACE H1 Smart RC Helicopter
Advanced GPS-Enabled Helicopter with 20+ Minute Flight Time
Product Description

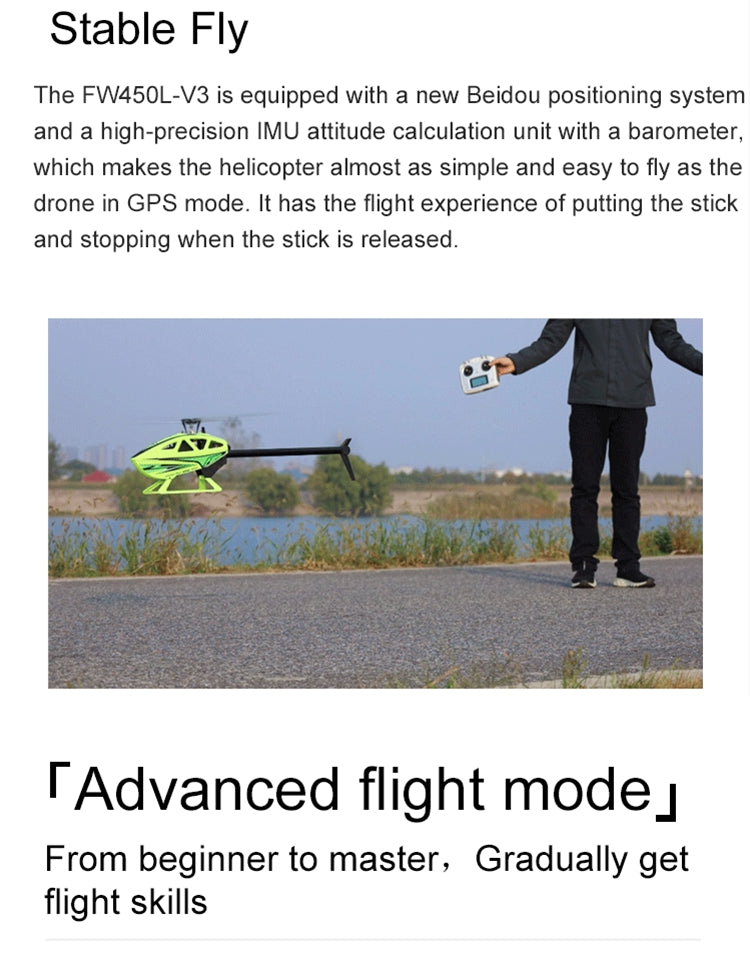

The FW450L-V3 is an advanced smart helicopter designed to be easier to fly than traditional RC helicopters. Equipped with a new M10N positioning system and high-precision IMU attitude calculation unit with barometer, this helicopter offers an almost drone-like flying experience in GPS mode. The aircraft features a "push stick to go, release stick to stop" operation that makes it accessible to both beginners and experienced pilots.
This helicopter features a 16V high-power brushless motor configuration that delivers superior performance compared to traditional 12V systems. Combined with an ESC optimised for motor characteristics, flight efficiency is greatly improved, providing over 20 minutes of flight time.

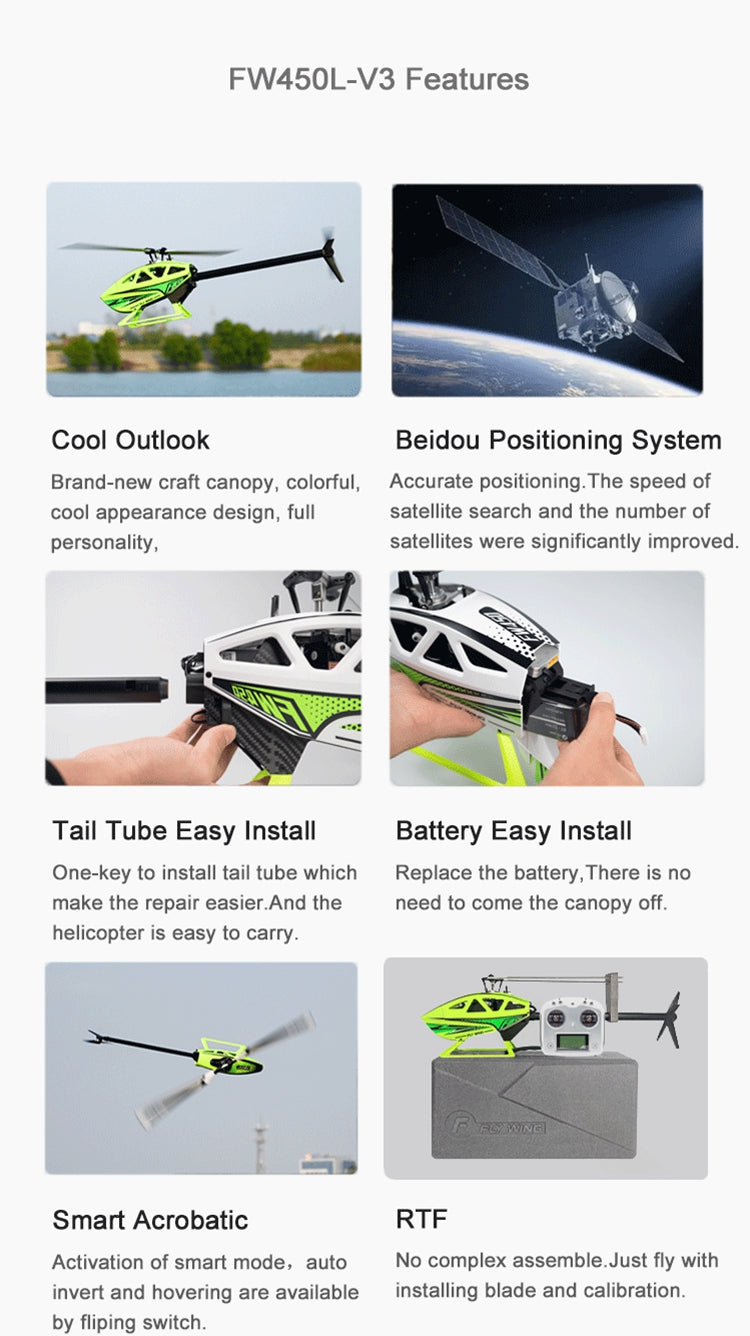

Key Features
- M10N GPS positioning with Beidou support
- 20+ minute ultra-long flight time
- 16V high-power brushless motor system
- One-key return and low-voltage protection
- Smart acrobatic mode with automatic invert
- GPS mode for stable hovering
- 3D manual mode for advanced aerobatics
- Auto route learning (figure-8 and circle patterns)
- High-performance servo with 4KG torque
- Modular design for easy maintenance
- Flight controller suspension damping
- One-key inverted flight capability

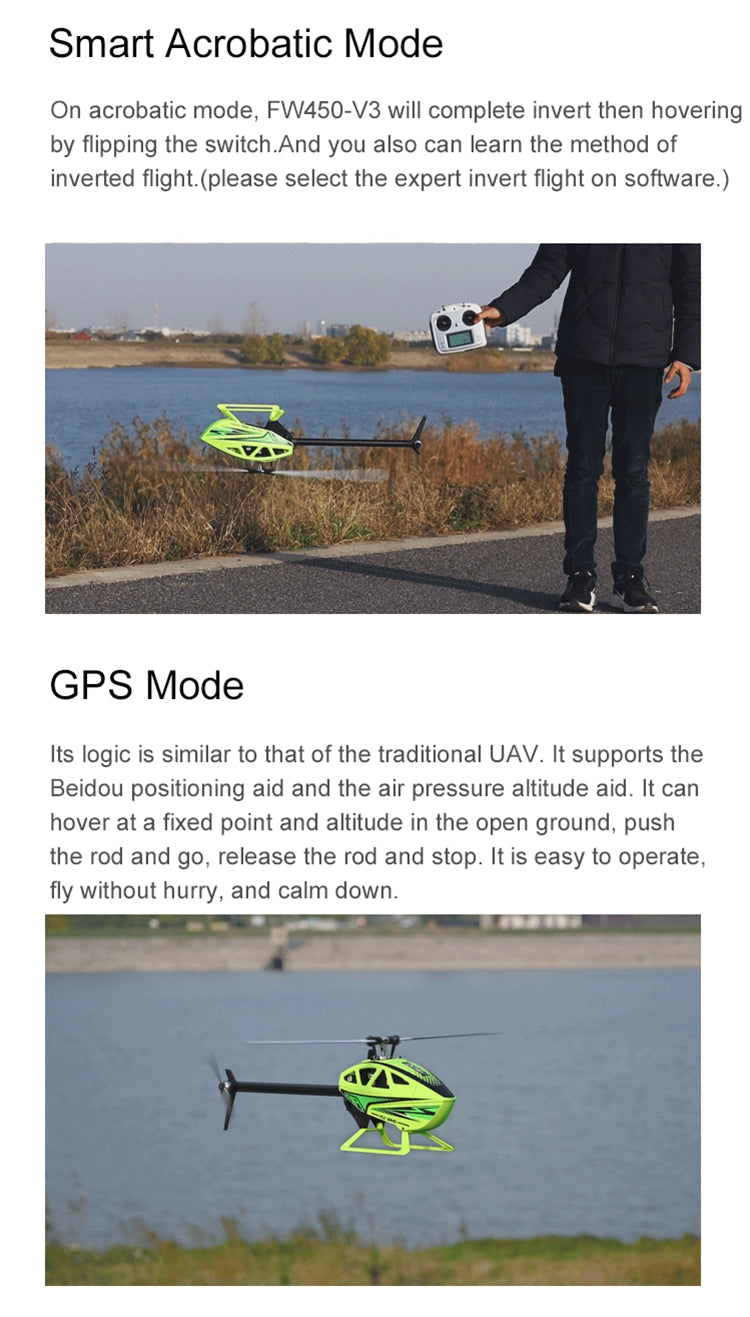

Flight Modes
GPS Mode
- Similar logic to traditional UAVs
- M10N positioning assistance
- Air pressure altitude assistance
- Fixed-point and altitude hovering
- Push rod to go, release rod to stop operation
Smart Acrobatic Mode
- Automatic invert and hover by switch flip
- Learn inverted flight methods
- Expert invert flight options via software
3D Manual Mode
- No flight angle limitations
- Greater operational freedom
- Inverted flight, spin flip capabilities
- Full aerobatic flight tension
Auto Route Mode
- Learn and repeat flight routes
- Figure-8 route patterns
- Circle route patterns
- Rudder control for nose direction during auto flight

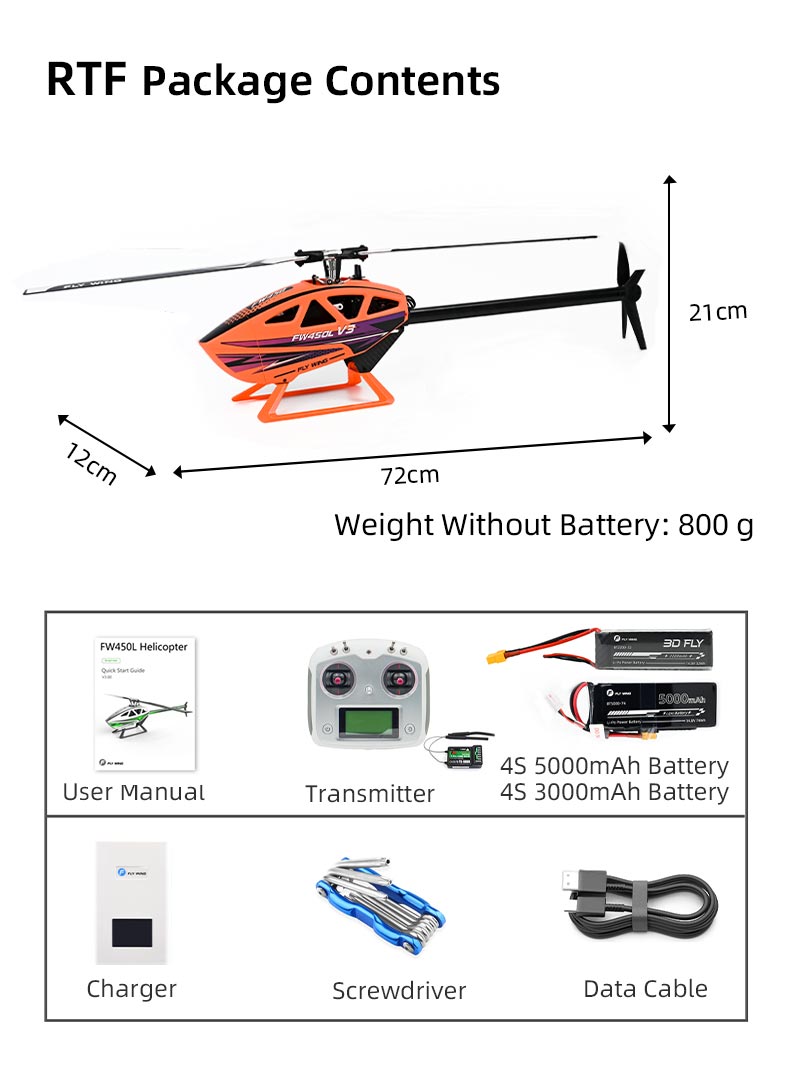

Technical Specifications
| Specification | Value |
|---|---|
| Model | FW450L-V3 |
| Length | 700mm |
| Height | 195mm |
| Width | 120mm |
| Weight (no battery) | 790g |
| Package Weight | 3.05kg |
| Package Size | 54 x 31.5 x 17cm |
| Main Rotor Wingspan | 805mm |
| Main Blade Length | 360mm |
| Tail Blade Length | 154mm |
| Main Motor Gear | 13T |
| Transmission Main Gear | 81T |
| Main Motor | Brushless Motor (2816) |
| Tail Motor | Brushless Motor (2008) |
| ESC | 60A Double Brushless ESC |
| Flight Time | 20+ minutes |
Technical Details

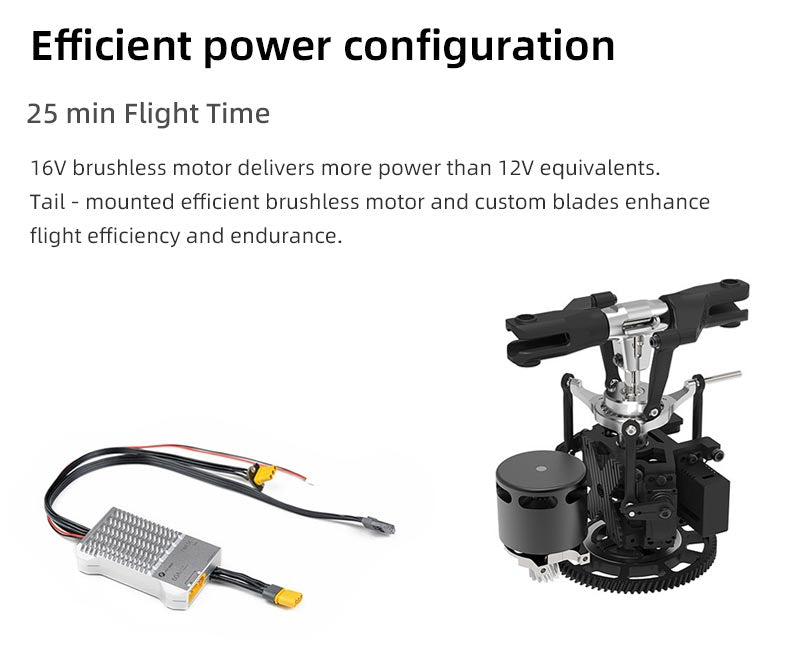

Power System
- 16V brushless motor configuration
- ESC optimised for motor characteristics
- Greatly improved flight efficiency

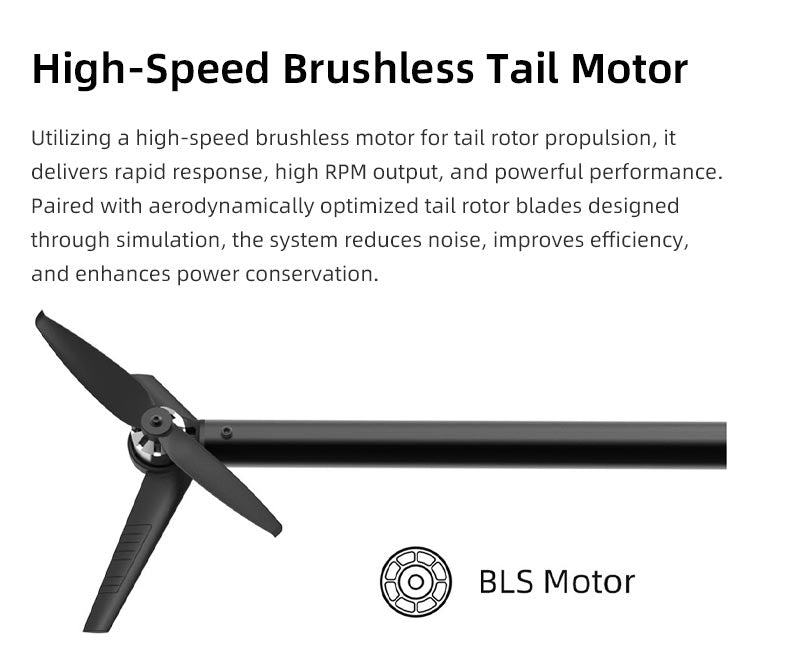

- High-speed brushless tail motor
- Specially designed high-efficiency tail rotor
Control System
- High-performance servo with coreless motor
- 4KG torque, 0.12sec/60° response
- Elliptical output shaft design
- Metal gear material
- No servo arm debugging required

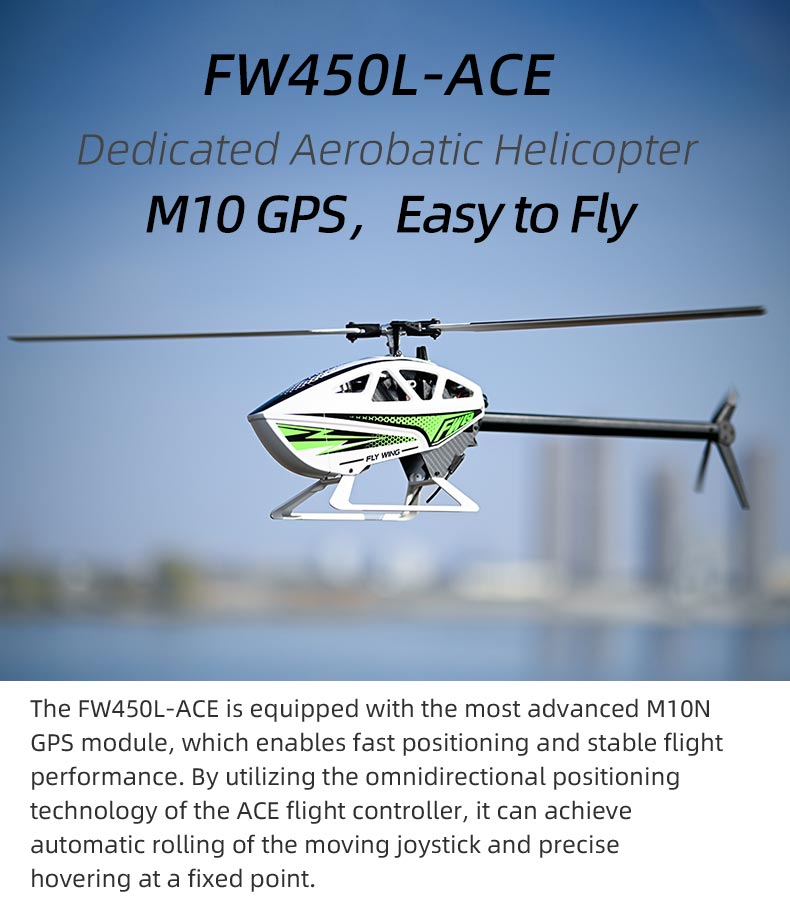

GPS & Navigation
- M10N GPS positioning module
- Beidou positioning system support
- Omni-directional positioning technology
- 80% performance increase vs previous generation
- GPS Level accuracy: ±1.5m (GPS normal)
- Vertical accuracy: ±0.5m (GPS normal)

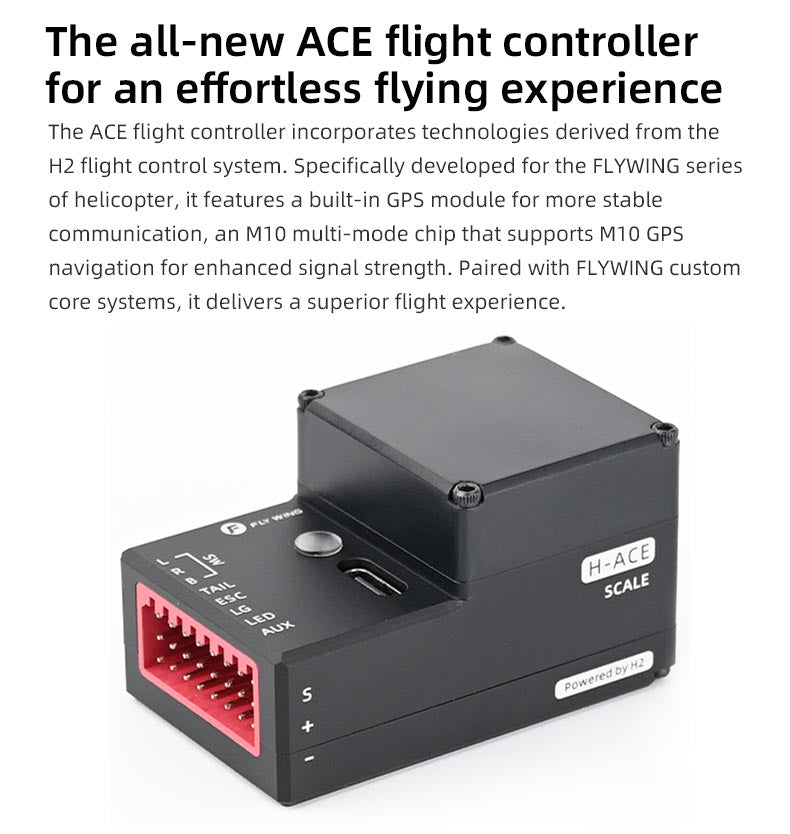

Flight Control
- High-precision IMU attitude calculation
- Barometer for altitude assistance
- Suspension damping system
- Customised EPDM damping materials
- Advanced filtering algorithm

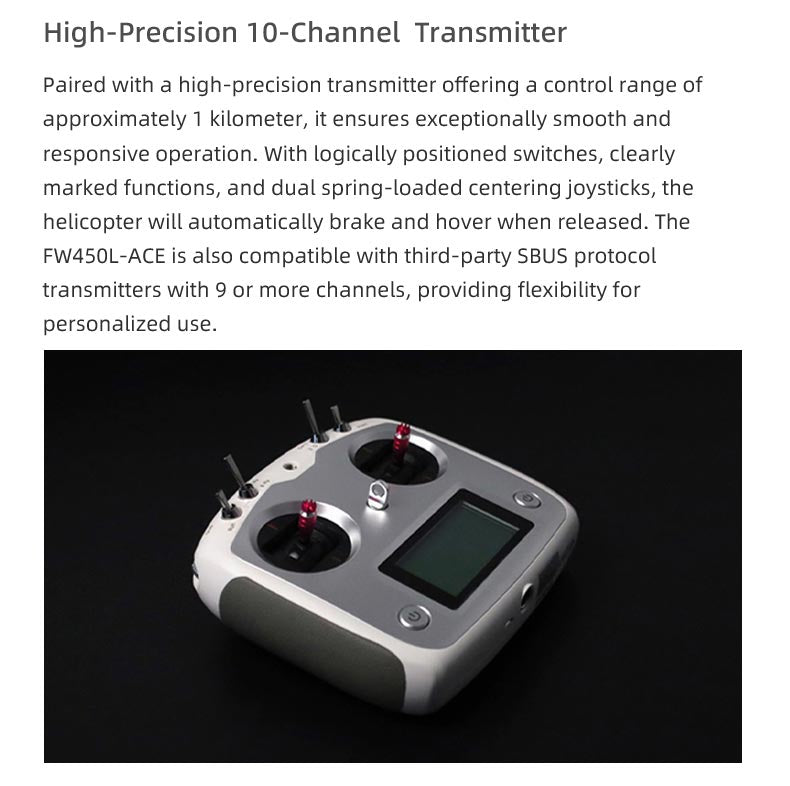

Remote Control
- High-precision remote control
- Approximately 1km radio distance
- Double rocker return design
- Clear function layout
- SBUS protocol support for 9+ channels

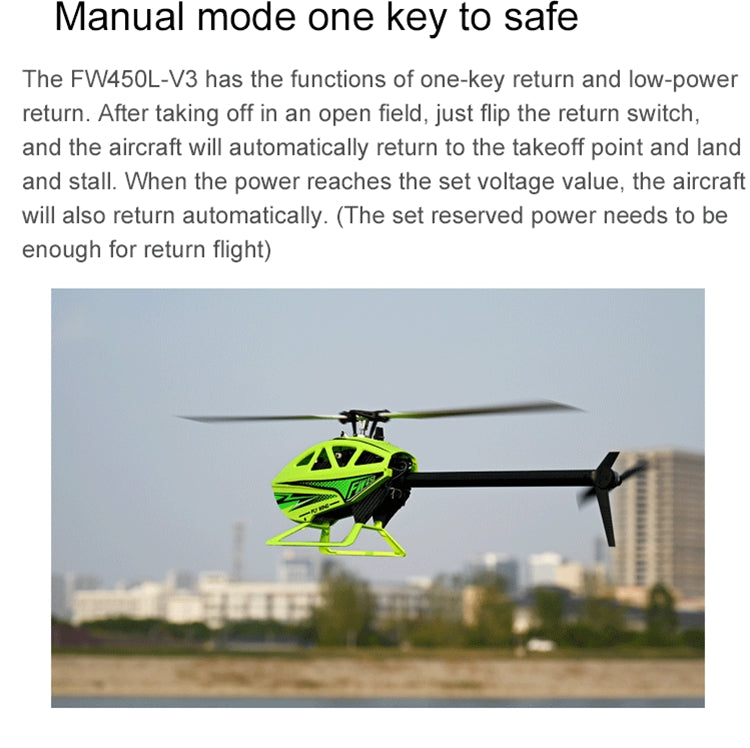

Safety Features
- One-key return function
- Low-voltage automatic return
- Failsafe protection
- Automatic landing at takeoff point
- Reserved power monitoring for safe return
- Manual mode one-key to safe
Software Features
- Intuitive and easy-to-use interface
- Helicopter power adjustment
- Reaction speed customisation

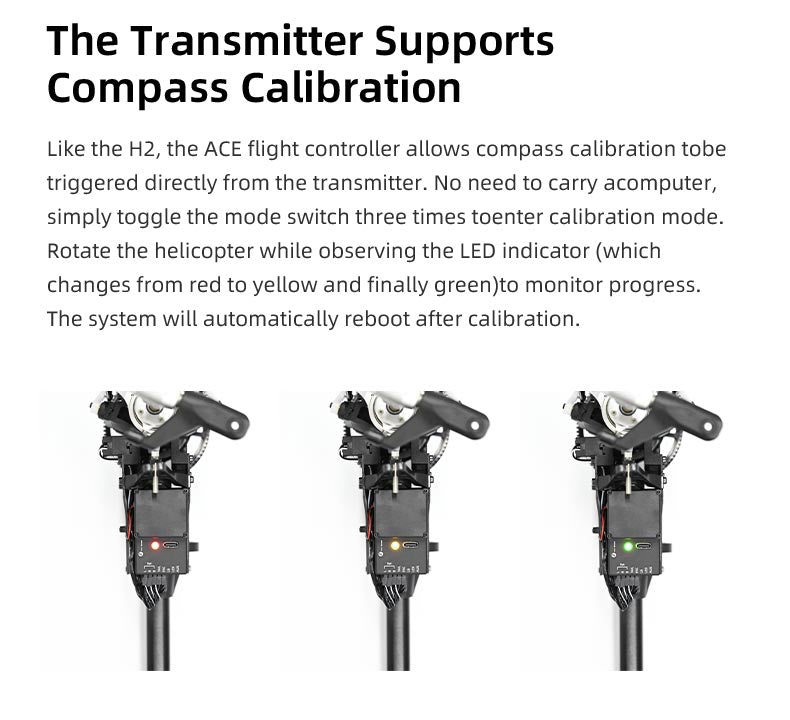

- Compass calibration
- Flight style personalisation
- Tutorial video integration
- Professional throttle control
Design Features

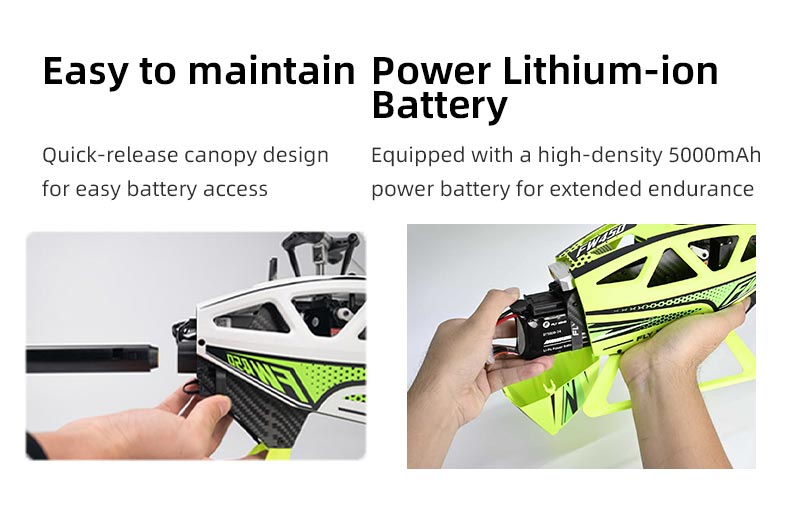

- Modular design for easy maintenance
- Quick battery compartment removal
- Battery replacement without removing rain shelter
- Quick detachable tailpipe design
- Easy portability and transport
- Four-blade rotor head upgrade available
Product FAQ
Product FAQ

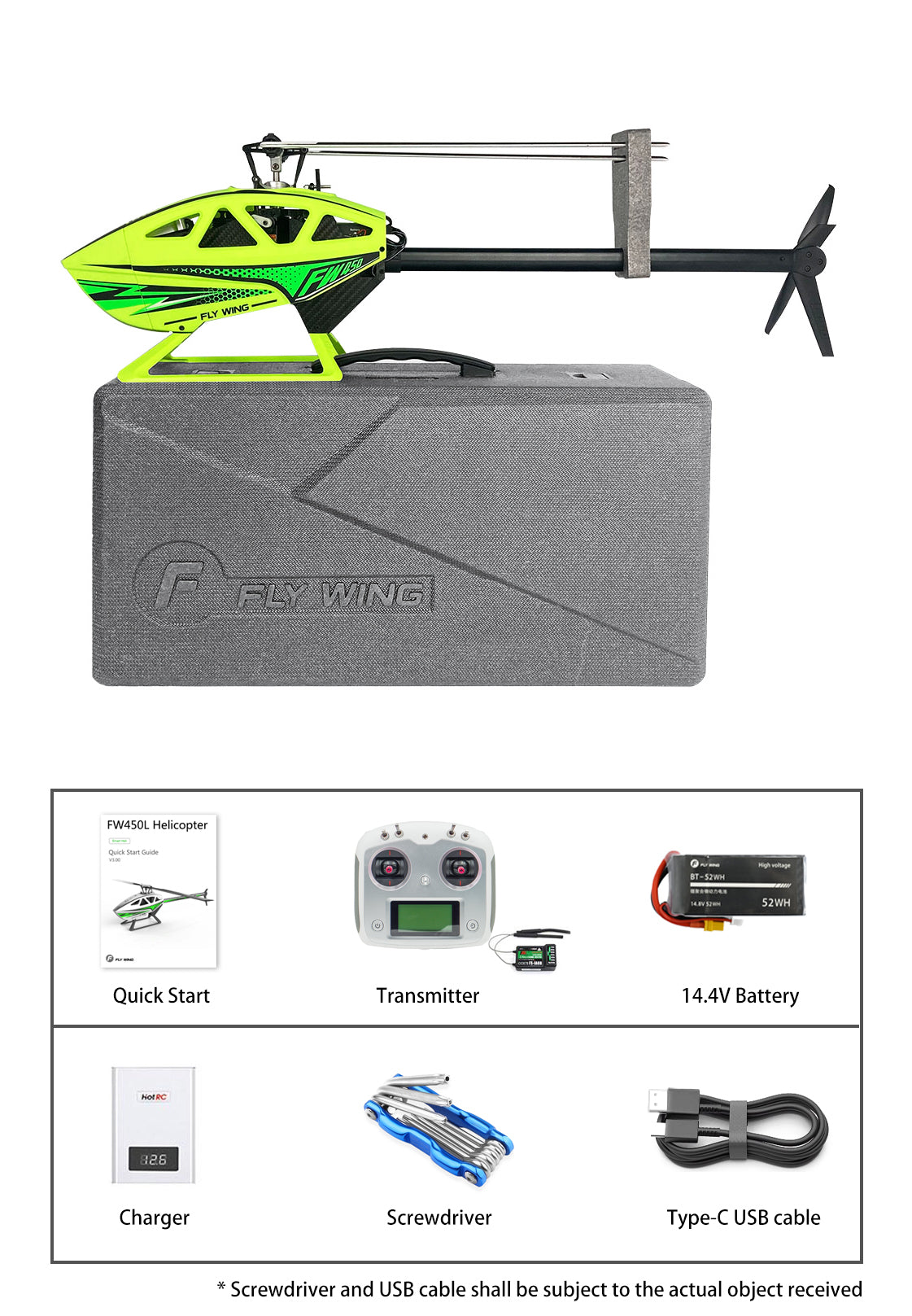

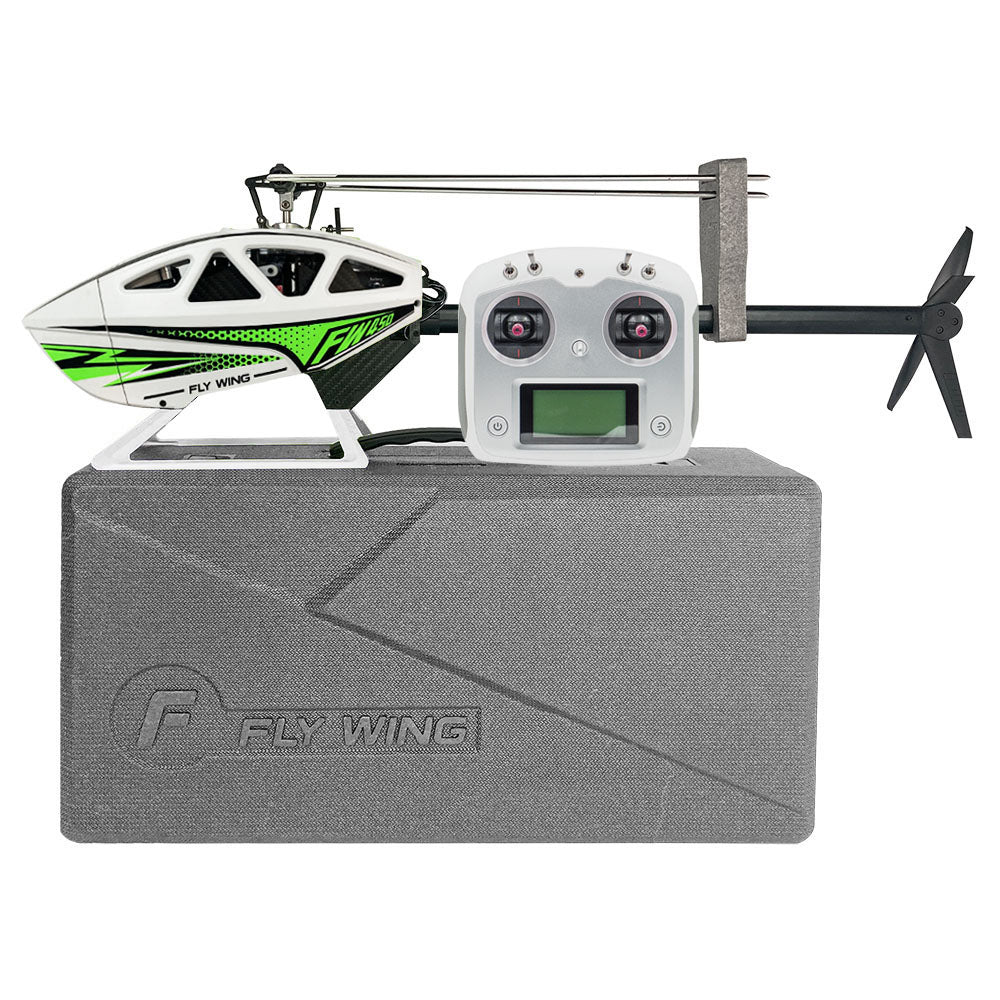

1. Is the FW450L-V3 Ready-to-Fly (RTF)?
Yes, the FW450L-V3 comes pre-assembled and fully ready to fly. Its modular design allows for easy maintenance, quick battery replacement, and rapid tailpipe removal, so you can start flying almost immediately.
2. What is the flight time of the FW450L-V3?
The helicopter offers an ultra-long flight time of over 20 minutes thanks to its 16V high-power brushless motor system and ESC optimised for motor characteristics. Actual flight time may vary depending on flight style and battery condition.
3. What flight modes does the FW450L-V3 support?
The FW450L-V3 supports multiple flight modes:
- GPS Mode: Stable hovering, altitude control, and “push stick to go, release stick to stop” operation
- Smart Acrobatic Mode: Automatic inverted flight and expert-level aerobatics
- 3D Manual Mode: Full aerobatic control with no flight angle limitations
- Auto Route Mode: Learn and repeat flight paths, including figure-8 and circle patterns
4. What GPS and navigation features does the FW450L-V3 have?
The helicopter is equipped with the M10N GPS module supporting Beidou positioning. It features omni-directional positioning, horizontal accuracy of ±1.5m, vertical accuracy of ±0.5m, and altitude assistance via a barometer. One-key return, low-voltage protection, and failsafe landing provide safe operation.
5. Who is the FW450L-V3 suitable for?
The FW450L-V3 is ideal for both beginners and experienced pilots. Its intuitive push-stick control, tutorial videos, and semi-assisted GPS modes make it accessible for novices, while its advanced 3D manual and acrobatic modes satisfy expert pilots looking for full aerobatic performance.
