The Bell 206 is a family of two-bladed, single- and twin-engined helicopters, manufactured by Bell Helicopter at its Mirabel, Quebec, plant. Originally developed as the YOH-4 for the United States Army's Light Observation Helicopter programme, it was not selected by the Army. Bell redesigned the airframe and successfully marketed the aircraft commercially as the five place Bell 206A JetRanger.

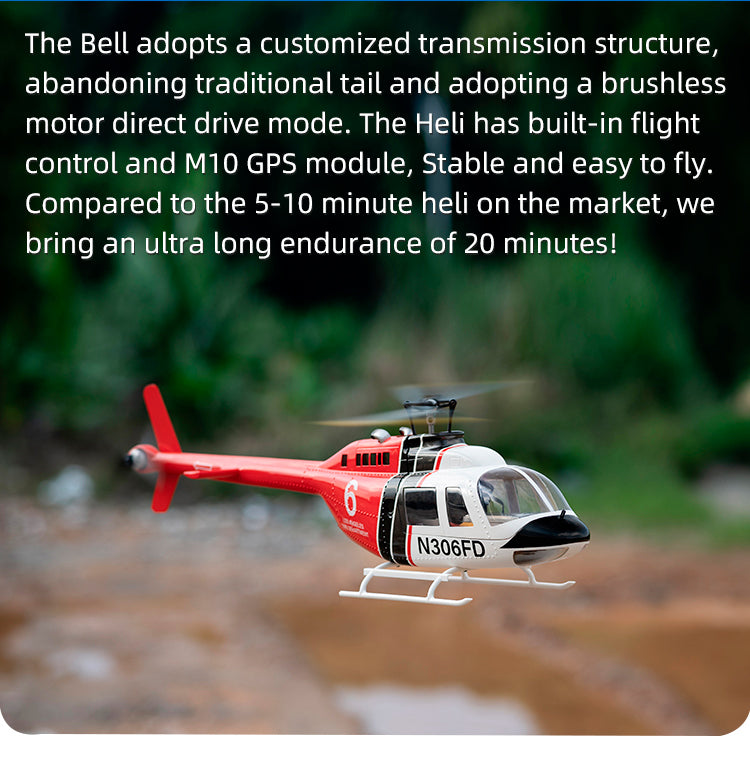

This Bell-206 scale model adopts a customised transmission structure, abandoning traditional tail design and adopting a brushless motor direct drive mode. The helicopter has built-in flight control and M10 GPS module for stable and easy flying. Compared to the 5-10 minute flight time of other helicopters on the market, this model brings an ultra-long endurance of 20 minutes!
Key Features
GPS navigation with one-key return function
20-minute ultra-long flight time

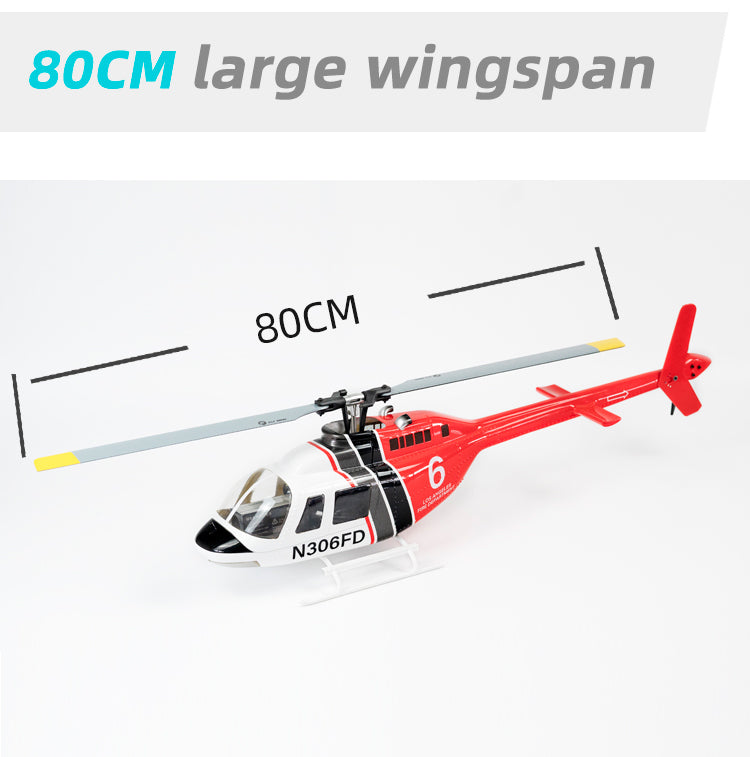

80CM rotor diameter for stable flight
Brushless motor direct drive system
Built-in flight control system
M10 GPS positioning module

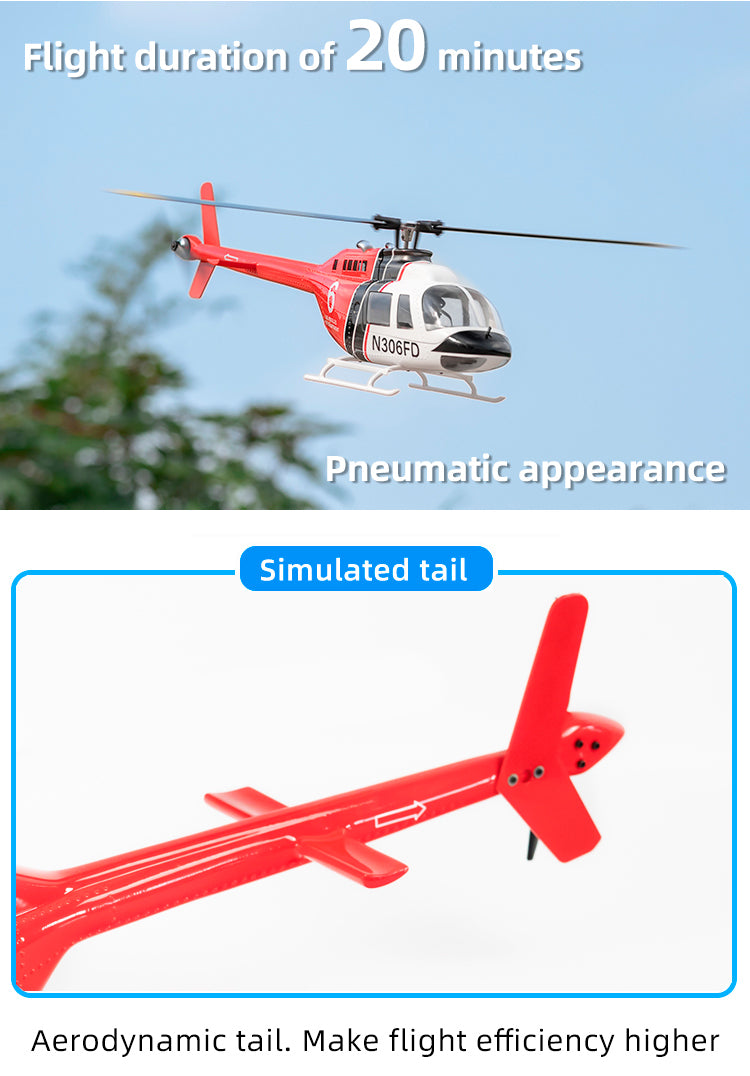

Aerodynamic tail design for enhanced flight efficiency

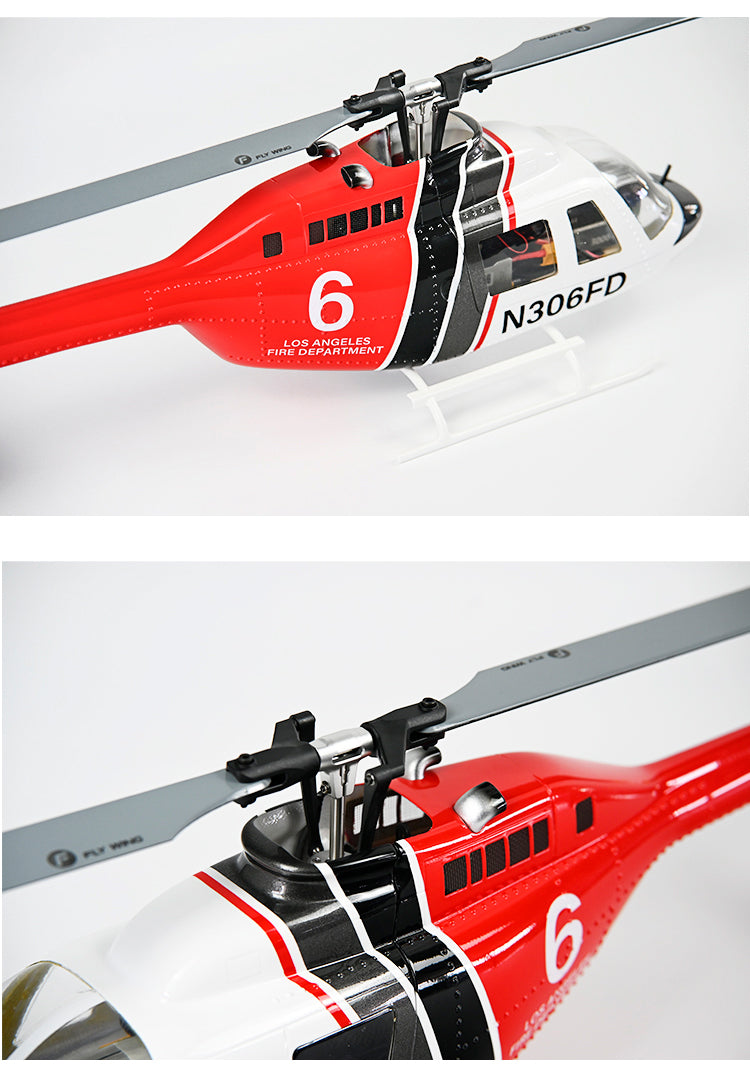

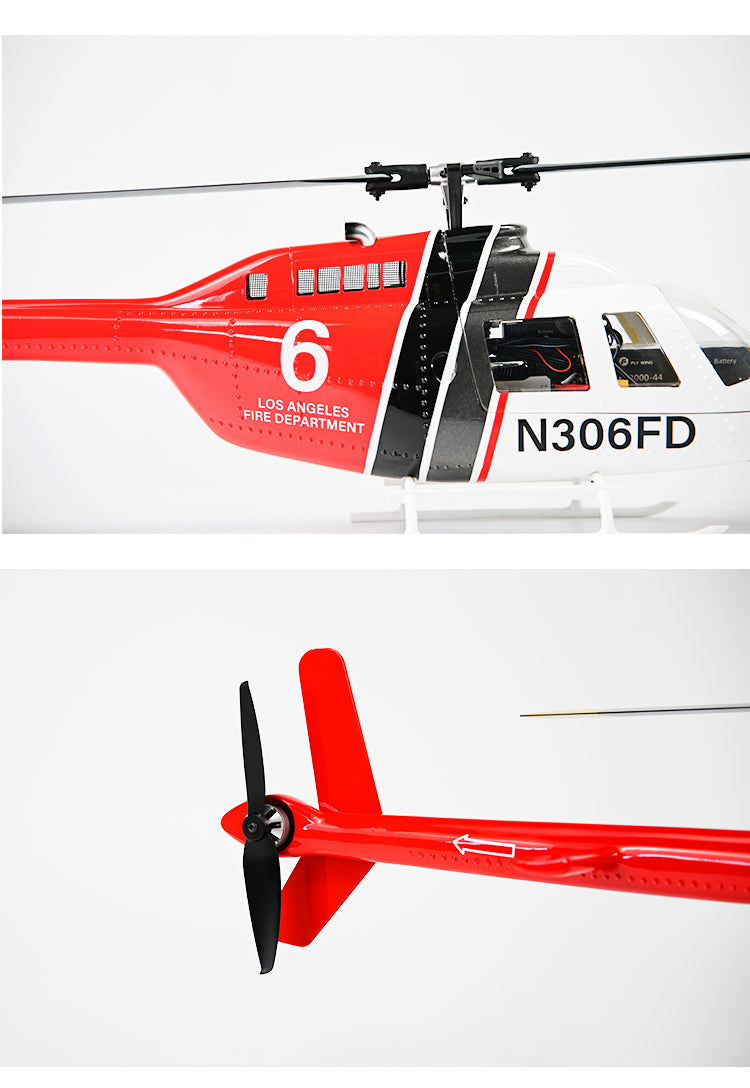

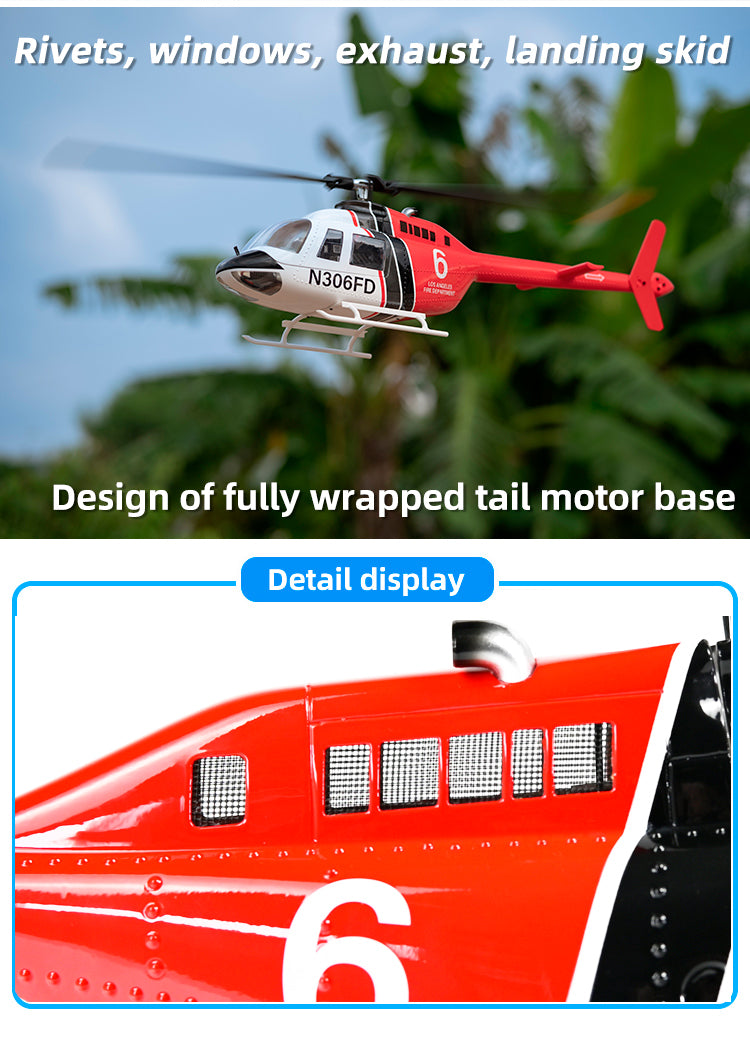

Fully wrapped tail motor base with detailed rivets design
Digital servo control system
Semi-automatic assisted flight mode

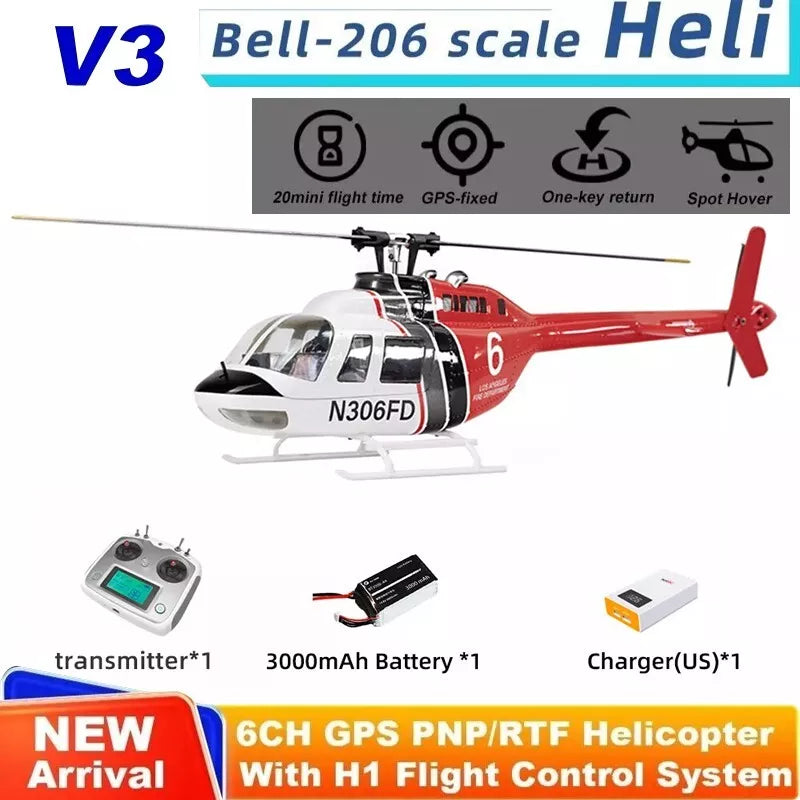

What's Included
Bell-206 Helicopter (pre-assembled and adjusted)
2.4GHz Remote Control Transmitter
Rechargeable Battery
Battery Charger
Spare Parts Kit

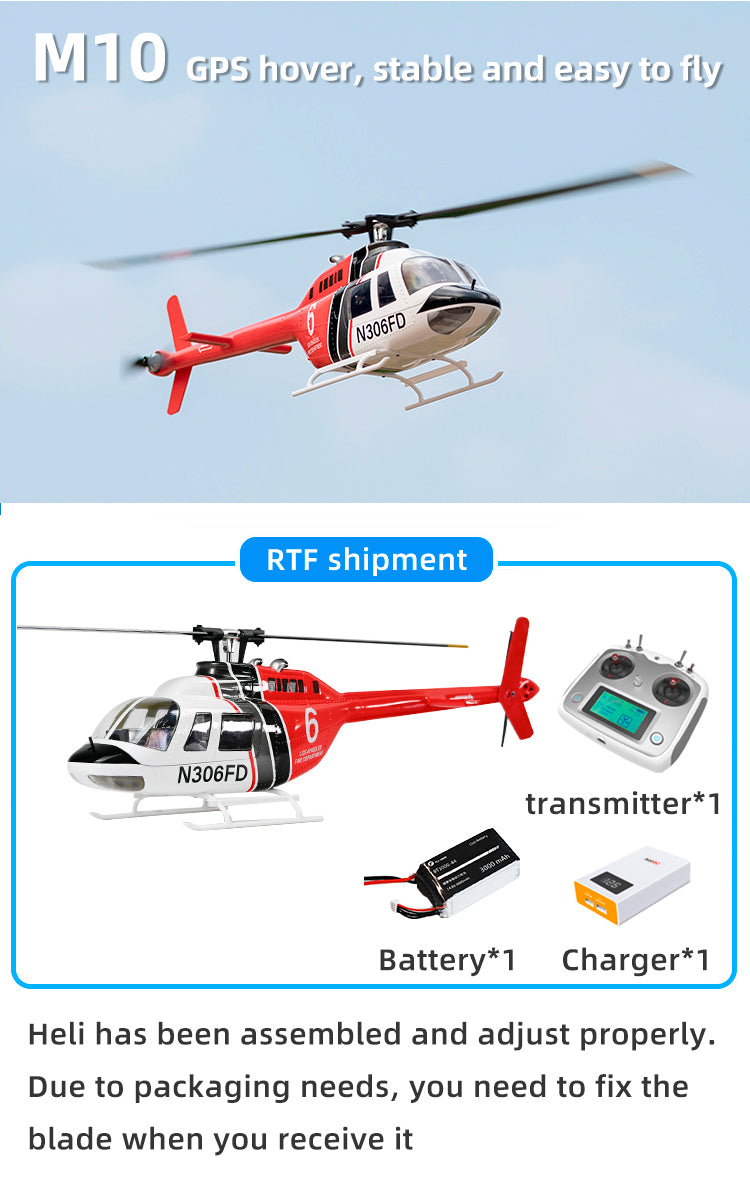

Note: Due to packaging requirements, you will need to attach the rotor blades when you receive the helicopter.

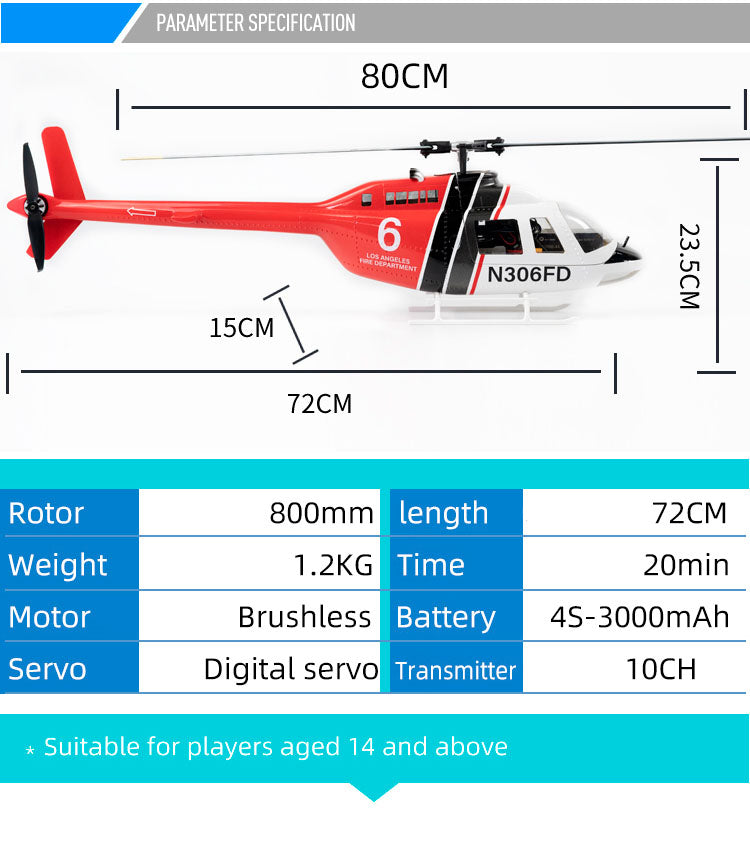

Technical Specifications
Specification
Value
Model
Bell-206 V3
Length (without blades)
720mm
Height
235mm
Width
150mm
Weight (excluding battery)
869g
Total Weight
1.2KG
Main Rotor Diameter
810mm
Main Rotor Length (single blade)
370mm
Tail Rotor Diameter
125mm
Technical Details
Motor & Drive System
Main Motor: 3508 Brushless Motor
Tail Drive Motor: Brushless Motor
Motor Main Gear: 13T
Main Drive Gear: 81T
ESC: 60A Electronic Speed Controller
Flight Control System
GPS Mode
3D Manual Mode
Lose Control Return Function
Low Voltage Return Protection
Semi-automatic Assisted Flight
GPS & Navigation
Satellite System: GPS/GLONASS/Galileo
Horizontal Accuracy: ±1.5m (when GPS working well)
Vertical Accuracy: ±0.5m (when GPS working well)
Hovering Precision: Advanced GPS positioning
Control System
Servo: Digital Servo System
Battery: High-capacity rechargeable battery
Flight Time: Up to 20 minutes
Age Recommendation
Suitable for players aged 14 and above
This advanced RC helicopter requires intermediate to advanced flying skills and is recommended for experienced RC pilots or supervised beginners.
